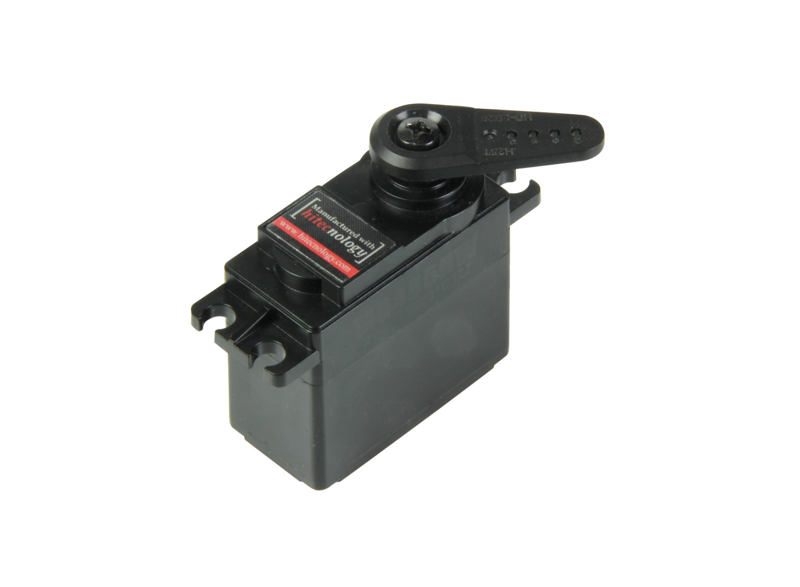

Hitec MD485HW Servo numérique avec décodeur magnétique (7 kg , 0,15s @ 7,4V)

Hitec MD485HW Servo numérique avec décodeur magnétique (7 kg , 0,15s @ 7,4V)

Hitec

HI1-01924

>10 en stock

€ 38,15 € 31,53 TVA excl.

Encoder : Potentiometer
Communication : PWM
Servo Type : Digital
Max. Voltage (V) : 7,40
Max. Force (kg/cm) : 7,40
Max. Setting Speed (sec / 60 degrees): 0,15
Gearing: H25T (Ø6,0)
Operating Voltage Range (Volts DC): 4.8V ~ 7.4V
Speed (Second @ 60°): 0.20 ~ 0.15
Maximum Torque Range kg. / cm.: 4.8 ~ 7.4
Current Draw at Idle: 30 mA
No Load Operating Current Draw: 320 mA
Stall Current Draw: 1,500 mA
Dimensions (Metric): 39.8 x 19.8 x 38.0
Weight (Gram): 45.0
Motor Type: Cored Carbon Brush
Gear Material: Plastic Resin Gears
Bearing Type: Top Ball BearingOutput Shaft (type / Ømm): 25 / 6

General Info

Brand: Hitec

Item Nr: HI1-01924

Barcode: 0,00

Servo - Specs

Speed 60°/Sec @ 4.8V: 0,20

Speed 60°/Sec @ 6.0V: 0,17

Speed 60°/Sec @ 7.4V: 0,15

Torque kg/cm @ 7.4V: 7,40

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 39,80

Width (mm): 19,80

Height (mm): 38,00

Weight (g): 45,00

Servo - Technology

Technology: Digital HV

Operating Voltage (V): 4.8V - 7.4V

Servo Motor: Brushed Motor

Servo Protection: Waterproof IP65

Servo Positioning: Hal Sensors

Servo Gears: Composite Gears

Servo Case: Composite Case

Connector: JR Universal + Colored Lead
