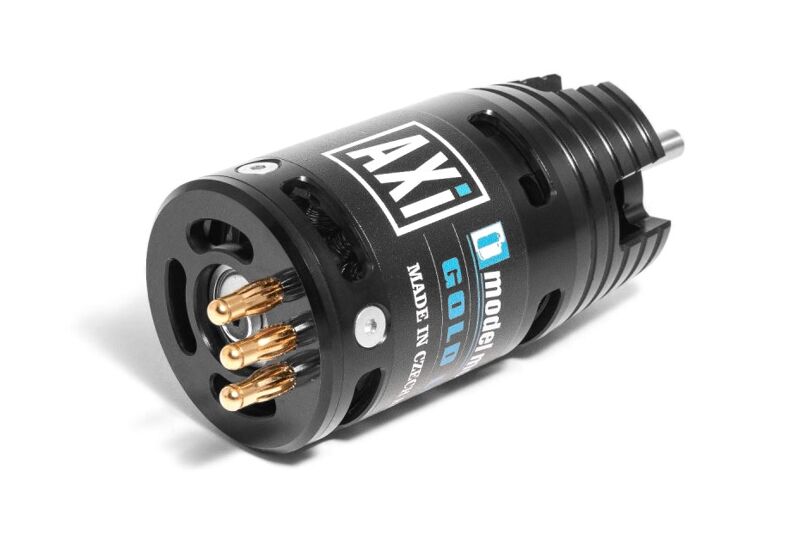

AXI 2826/10 Cyclone KV920

AXI 2826/10 Cyclone KV920

AXI model motors

3EL105705

Niet op voorraad

€ 163,59 € 135,20 excl. BTW

Powering LiXX cells	3 - 4
RPM/V [ot./min/V]	920
Turn count	10
Internal resistance [mOhm]	42
Open-circuit current [A]	1.6
Max. efficiency [%]	86
Max. efficiency current (η>78%) [A]	20 - 30
Max. peak current (60 s) [A]	44
Max. power [W]	675
Diameter [mm]	35
Length [mm]	57.5
Shaft diameter [mm]	5
Weight [g]	230
Poles count	14
Timing [°]	15 - 25
ESC [A]	50 - 70
Weight of glider (up-to) [g]	3000

General Info

Brand: AXI model motors

Barcode: 8595247303264

Motor - Specs

Motor - Input Voltage Range (V): 3S - 4S Li-Po

Motor - KV (Rpm/V): 920

Motor - Poles: 14-Pole

Motor - Timing: 15-25

Motor - Turns (T): 10

Motor - Dimensions

Motor - Dia. ø (mm): 35

Motor - Length (mm): 57,5

Motor - Shaft Dia. ø (mm): 5.0 mm

Motor - Weight (g): 230
