OMA-3815-1000 EP (2T .15)

OMA-3815-1000 EP (2T .15)

OS

OS050

Slechts 1 op voorraad

€ 74,32 € 61,42 excl. BTW

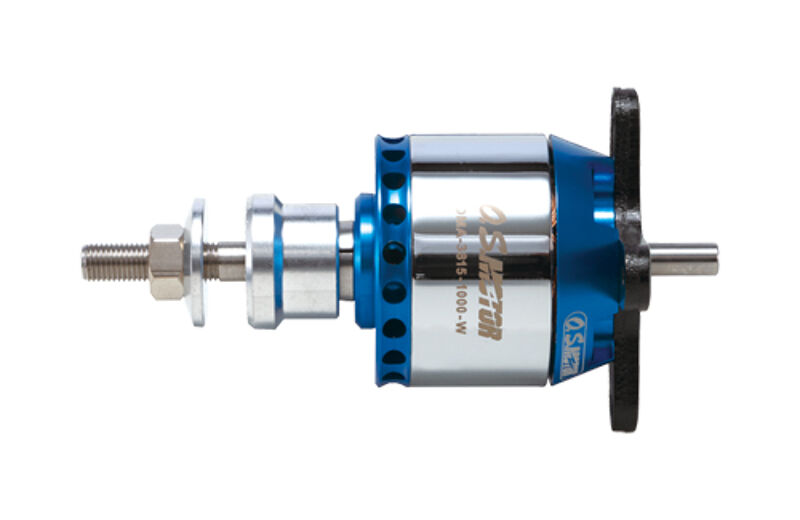

OS OMA - 3815-1000 EP (2T .15, 2.5cc equivalent)

Prop size 9x6 up to 12x6SF

Use a 3S LiPo pack

FEATURES

Connectors: 3.5mm (Inc.)
Poles: 14
Length: 37.8mm
Weight: 130g
Bearings: 3
Voltage: 11.1v
Max Current: 45A
Current Range: 50 - 70A
Diameter: 37mm
ESC Timing Degrees: 20 - 30 Degrees
KV RPM: 1000
Max Efficiency: 85%
Shaft dia: 5mm
Shaft Length: 11.7mm

General Info

Brand: OS

Item Nr: OS053

Motor - Specs

Motor - Input Voltage Range (V): 3S Li-Po

Motor - KV (Rpm/V): 1000

Motor - Poles: 14-Pole

Motor - Dimensions

Motor - Dia. ø (mm): 37

Motor - Length (mm): 37,8

Motor - Shaft Dia. ø (mm): 5.0 mm

Motor - Weight (g): 130
