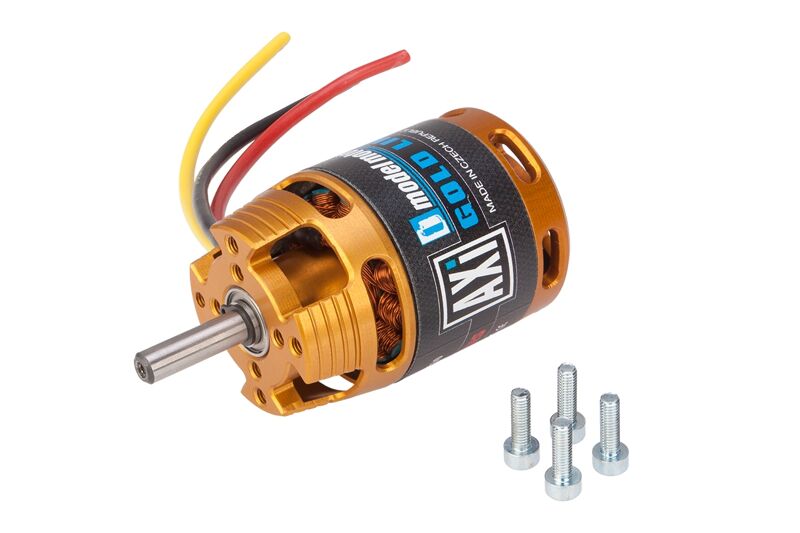

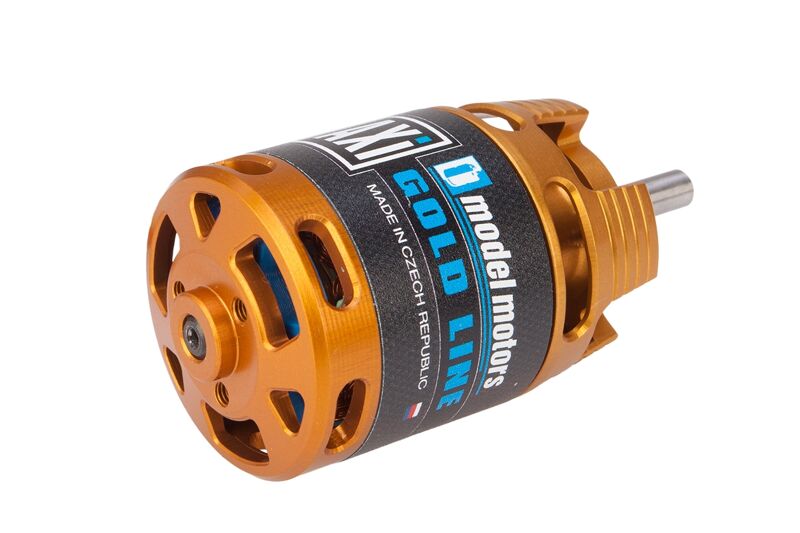

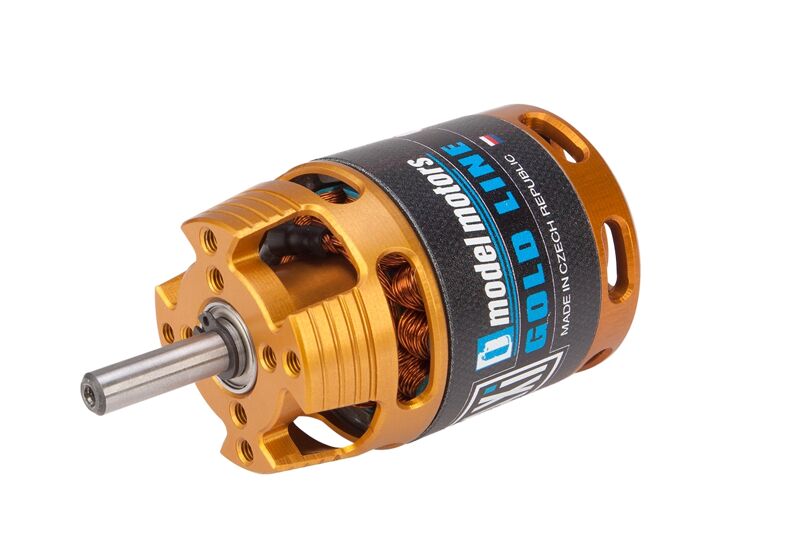

AXI 2820/14 V2 LONG Brushless

AXI 2820/14 V2 LONG Brushless

3EL105300V2L

Trade prices excl. VAT

1 / € 82,31

not in stock

€ 99,59 € 82,31 excl. VAT

Powering LiXX cells	3 - 4
RPM/V [ot./min/V]	860
Turn count	14
Internal resistance [mOhm]	78
Open-circuit current [A]	1.7
Max. efficiency [%]	88
Max. efficiency current (η>75%) [A]	15 - 30
Max. peak current (60 s) [A]	37
Max. power [W]	520

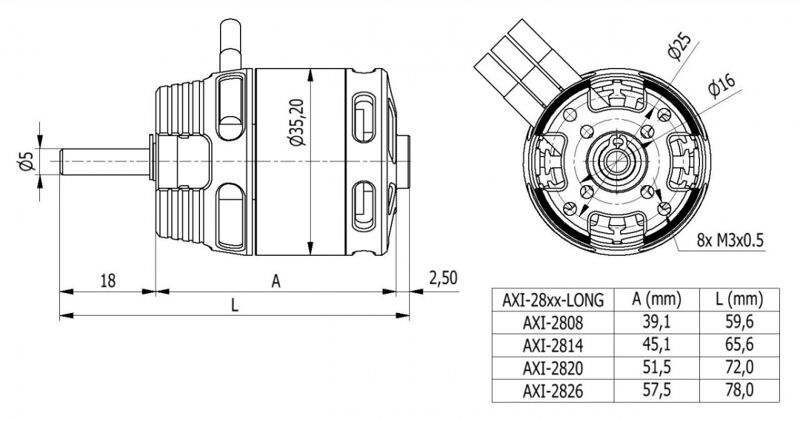

Diameter [mm]	35
Length [mm]	52
Shaft diameter [mm]	5
Weight [g]	158
Poles count	14
Timing [°]	15 - 25
ESC [A]	40 - 50
Weight of glider (up-to) [g]	2400

General Info

Barcode: 8595247302427

Motor - Specs

Motor - Input Voltage Range (V): 3S - 4S Li-Po

Motor - KV (Rpm/V): 860

Motor - Poles: 14-Pole

Motor - Timing: 15-25

Motor - Turns (T): 14

Motor - Dimensions

Motor - Dia. ø (mm): 35

Motor - Length (mm): 52

Motor - Shaft Dia. ø (mm): 5.0 mm

Motor - Weight (g): 158
