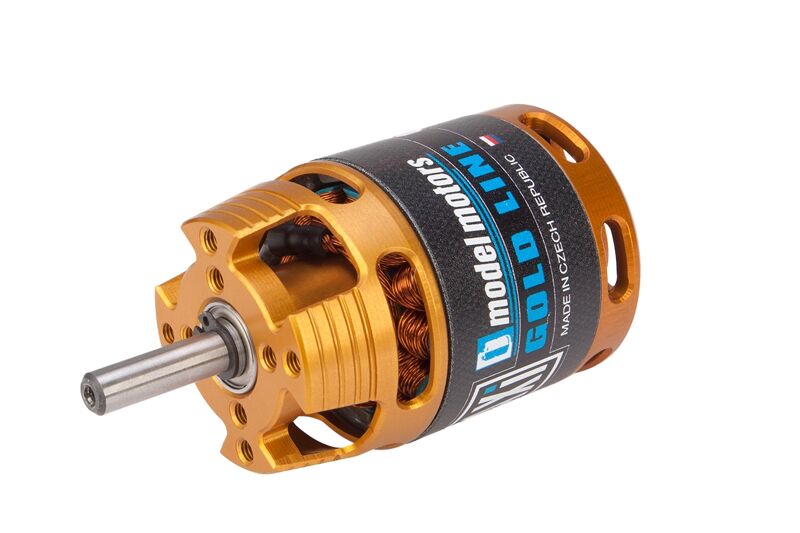

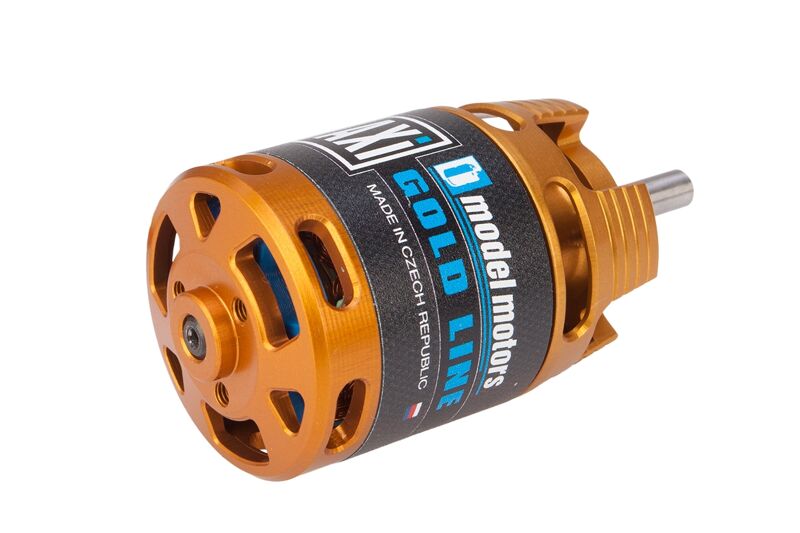

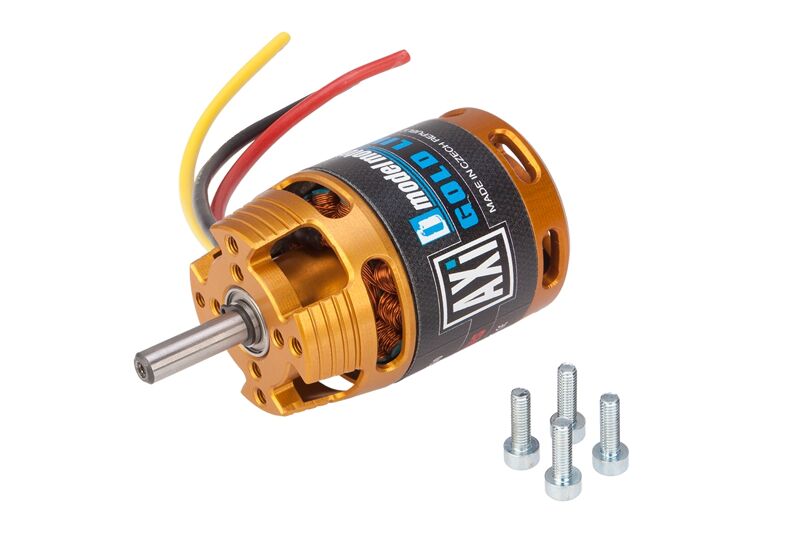

High torque brushless motor with rotating drum and high power neodym magnets suitable for models of 400-500 size, and up to 1500g in weight. The hardened steel 5mm diameter shaft and is supported by three ball bearings.
Delivered without prop. holder and Radial mount set!
| Powering LiXX cells | 2 - 3 |
| RPM/V [ot./min/V] | 1820 |
| Turn count | 16 |
| Internal resistance [mOhm] | 75 |
| Open-circuit current [A] | 2 |
| Max. efficiency [%] | 82 |
| Max. efficiency current (η>75%) [A] | 10 - 15 |
| Max. peak current (60 s) [A] | 26 |
| Max. power [W] | 170 |
| Diameter [mm] | 35 |
| Length [mm] | 39 |
| Shaft diameter [mm] | 5 |
| Weight [g] | 85 |
| Poles count | 14 |
| Timing [°] | 15 - 25 |
| ESC [A] | 30 - 35 |
| Weight of acrobat (up-to) (hotliner) [g] | 800 |
