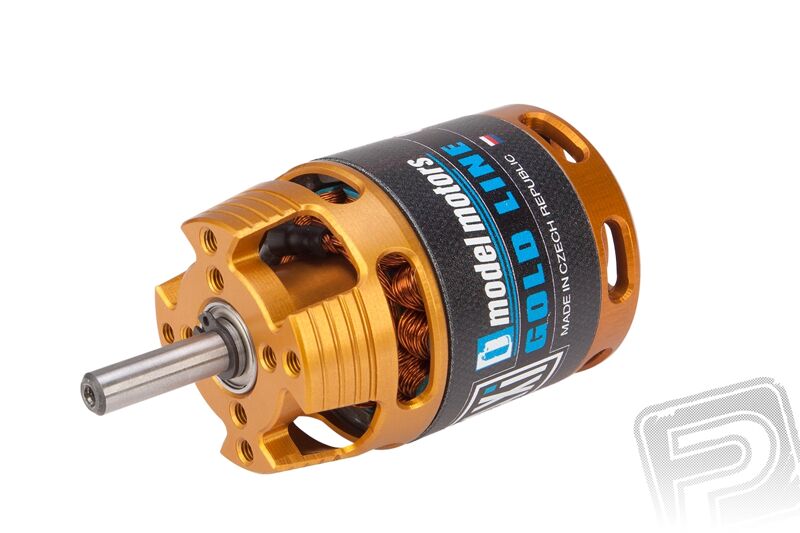

AXI 2808/24 V2 LONG Brushless

AXI 2808/24 V2 LONG Brushless

AXI model motors

3EL10535V2L

not in stock

€ 83,59 € 69,08 excl. VAT

Powering LiXX cells	2 - 3
RPM/V [ot./min/V]	1190
Turn count	24
Internal resistance [mOhm]	115
Open-circuit current [A]	1
Max. efficiency [%]	84
Max. efficiency current (η>75%) [A]	6 - 15
Max. peak current (60 s) [A]	23
Max. power [W]	232
Diameter [mm]	35
Length [mm]	39
Shaft diameter [mm]	5
Weight [g]	85
Poles count	14
Timing [°]	15 - 25
ESC [A]	30 - 35
Weight of glider (up-to) [g]	1300

General Info

Brand: AXI model motors

Barcode: 8595247302342,00

Motor - Specs

Motor - Input Voltage Range (V): 2S - 3S Li-Po

Motor - KV (Rpm/V): 1190,00

Motor - Poles: 14-Pole

Motor - Timing: 15-25

Motor - Turns (T): 24,00

Motor - Dimensions

Motor - Dia. ø (mm): 35,00

Motor - Length (mm): 39,00

Motor - Shaft Dia. ø (mm): 5.0 mm

Motor - Weight (g): 85,00
