AXI 2826/12 V2 brushless

AXI 2826/12 V2 brushless

AXI model motors

3EL105613V2

not in stock

€ 123,59 € 102,14 excl. VAT

Powering LiXX cells	3 - 5
RPM/V [ot./min/V]	760
Turn count	12
Internal resistance [mOhm]	62
Open-circuit current [A]	1.3
Max. efficiency [%]	86
Max. efficiency current (η>78%) [A]	15 - 25
Max. peak current (60 s) [A]	38
Max. power [W]	655

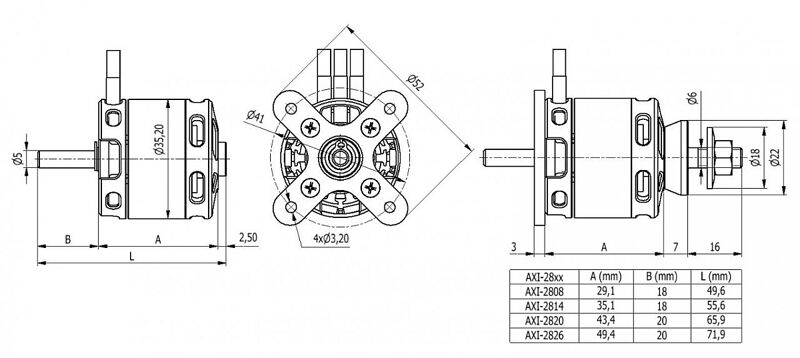

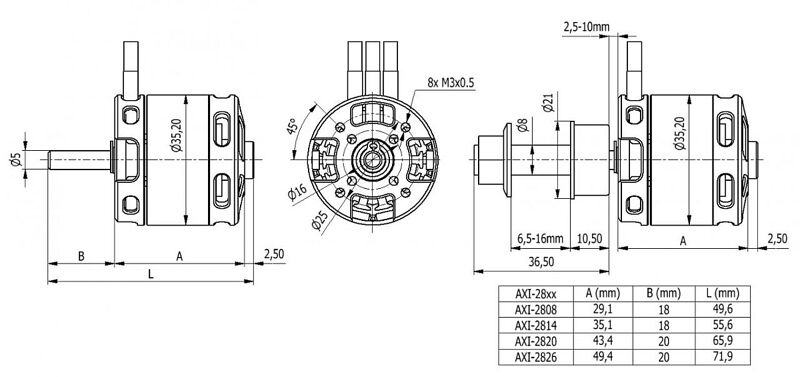

Diameter [mm]	35
Length [mm]	52
Shaft diameter [mm]	5
Weight [g]	177
Poles count	14
Timing [°]	15 - 25
ESC [A]	45 - 60
Weight of glider (up-to) [g]	3000
Weight of trainer (up-to) [g]	2600
Weight of acrobat (up-to) [g]	2500
Weight of 3D (up-to) [g]	1600

General Info

Brand: AXI model motors

Barcode: 8595247302311,00

Motor - Specs

Motor - Input Voltage Range (V): 3S - 5S Li-Po

Motor - KV (Rpm/V): 760,00

Motor - Poles: 14-Pole

Motor - Timing: 15-25

Motor - Turns (T): 12,00

Motor - Dimensions

Motor - Dia. ø (mm): 35,00

Motor - Length (mm): 52,00

Motor - Shaft Dia. ø (mm): 5.0 mm

Motor - Weight (g): 177,00
