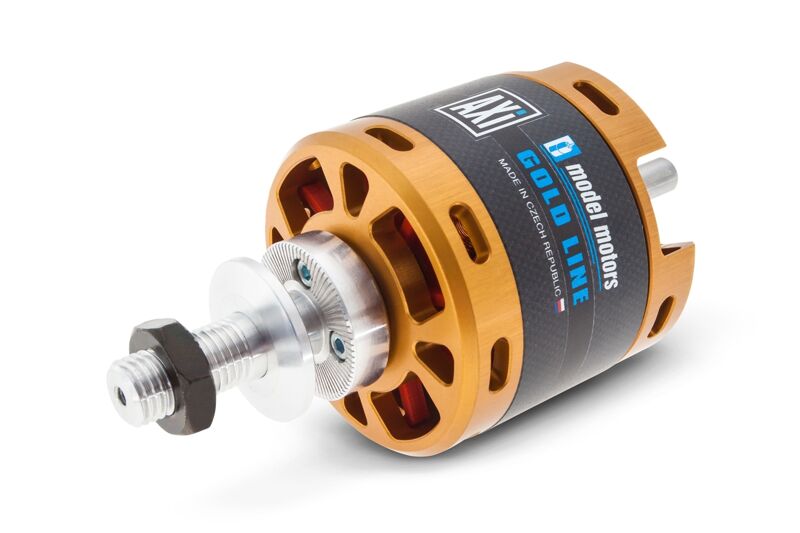

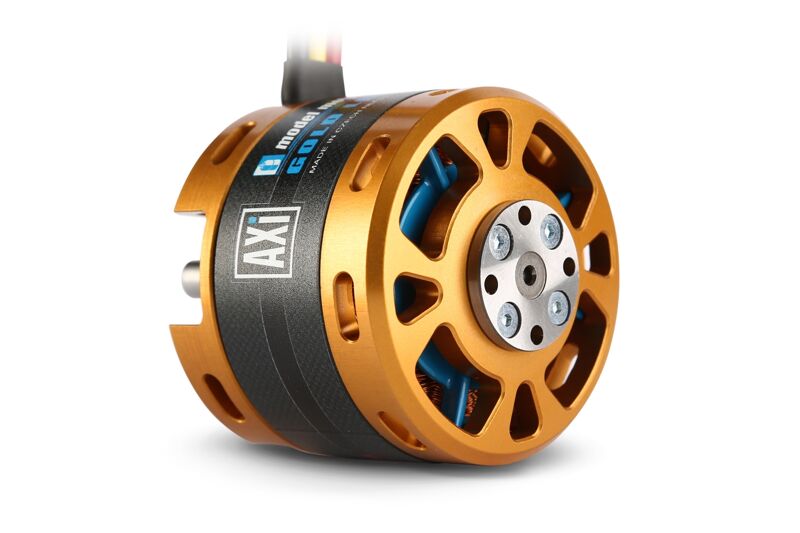

AXI 5320/28 V2 brushless

AXI 5320/28 V2 brushless

3EL105630V2

Trade prices excl. VAT

1 / € 224,79

not in stock

€ 271,99 € 224,79 excl. VAT

Powering LiXX cells	6 - 8
RPM/V [ot./min/V]	249
Turn count	28
Internal resistance [mOhm]	57
Open-circuit current [A]	1.3
Max. efficiency [%]	94
Max. efficiency current (η>85%) [A]	10 - 36
Max. peak current (60 s) [A]	52
Max. power [W]	1600
Diameter [mm]	63
Length [mm]	55.2
Shaft diameter [mm]	8
Weight [g]	515
Poles count	14
Timing [°]	15 - 25
ESC [A]	70 - 100
Weight of glider (up-to) [g]	7500
Weight of trainer (up-to) [g]	6500
Weight of acrobat (up-to) [g]	5200
Weight of 3D (up-to) [g]	4000

General Info

Barcode: 8595247301994

Motor - Specs

Motor - Input Voltage Range (V): 6S - 8S Li-Po

Motor - KV (Rpm/V): 249

Motor - Poles: 14-Pole

Motor - Timing: 15-25

Motor - Turns (T): 28

Motor - Dimensions

Motor - Dia. ø (mm): 63

Motor - Length (mm): 55,2

Motor - Shaft Dia. ø (mm): 8.0 mm

Motor - Weight (g): 515
