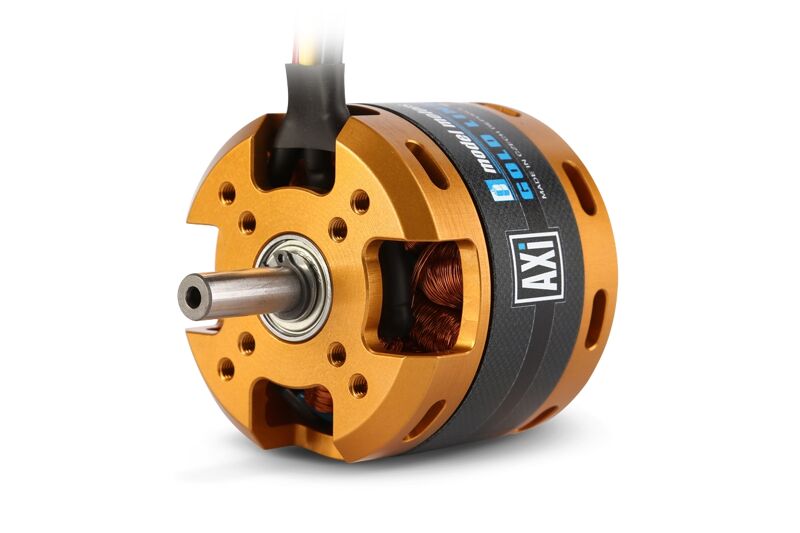

AXI 5320/34 V2 brushless

AXI 5320/34 V2 brushless

3EL105631V2

Trade prices excl. VAT

1 / € 219,83

Only 1 in stock

€ 265,99 € 219,83 excl. VAT

Powering LiXX cells	8 - 10
RPM/V [ot./min/V]	206
Turn count	28
Internal resistance [mOhm]	84
Open-circuit current [A]	1.1
Max. efficiency [%]	95
Max. efficiency current (η>85%) [A]	8 - 32
Max. peak current (60 s) [A]	47
Max. power [W]	1850
Diameter [mm]	63
Length [mm]	55.2
Shaft diameter [mm]	8
Weight [g]	515
Poles count	14
Timing [°]	15 - 25
ESC [A]	70 - 90
Weight of glider (up-to) [g]	7500
Weight of trainer (up-to) [g]	6000
Weight of acrobat (up-to) [g]	5300
Weight of 3D (up-to) [g]	4000

General Info

Barcode: 8595247302007

Motor - Specs

Motor - Input Voltage Range (V): 8S - 10S Li-Po

Motor - KV (Rpm/V): 206

Motor - Poles: 14-Pole

Motor - Timing: 15-25

Motor - Turns (T): 28

Motor - Dimensions

Motor - Dia. ø (mm): 63

Motor - Length (mm): 55,2

Motor - Shaft Dia. ø (mm): 8.0 mm

Motor - Weight (g): 515
