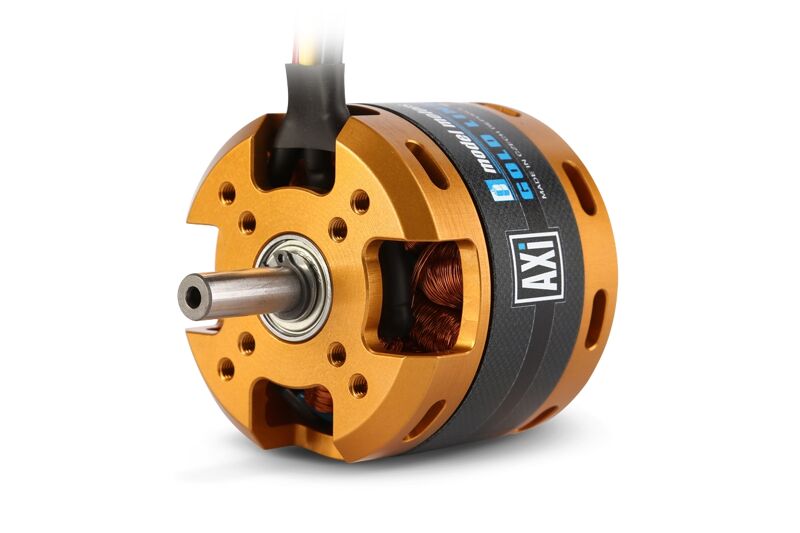

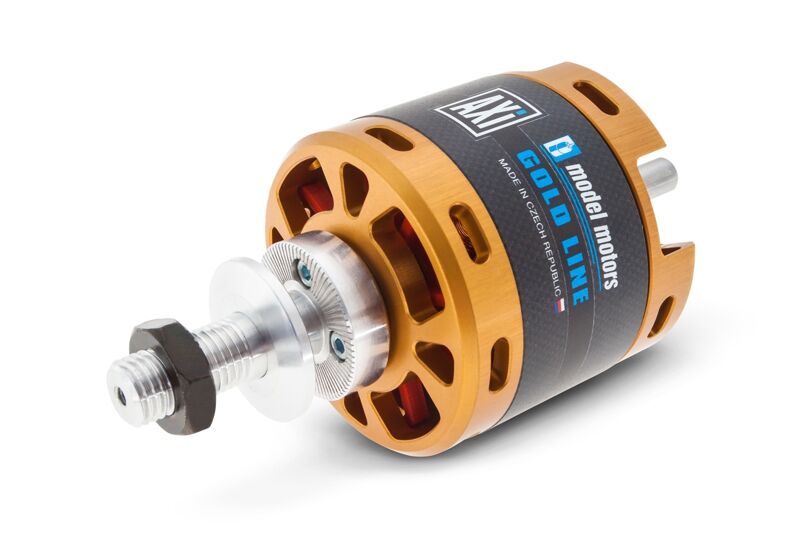

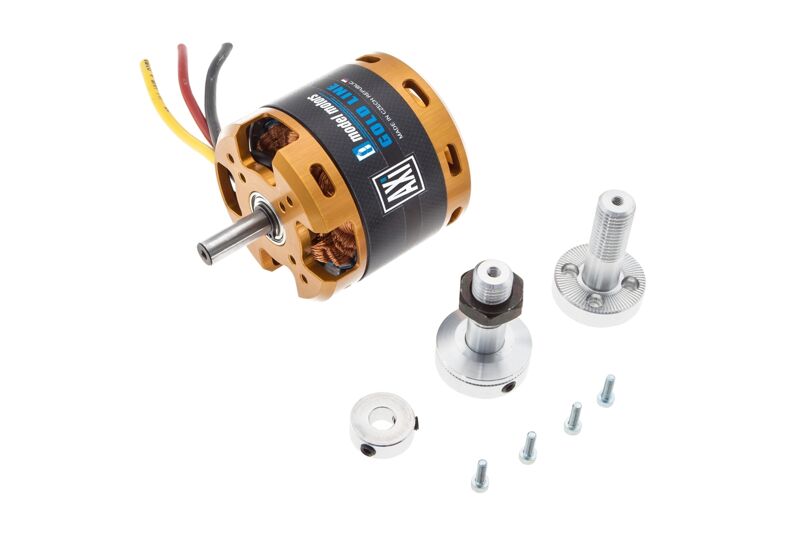

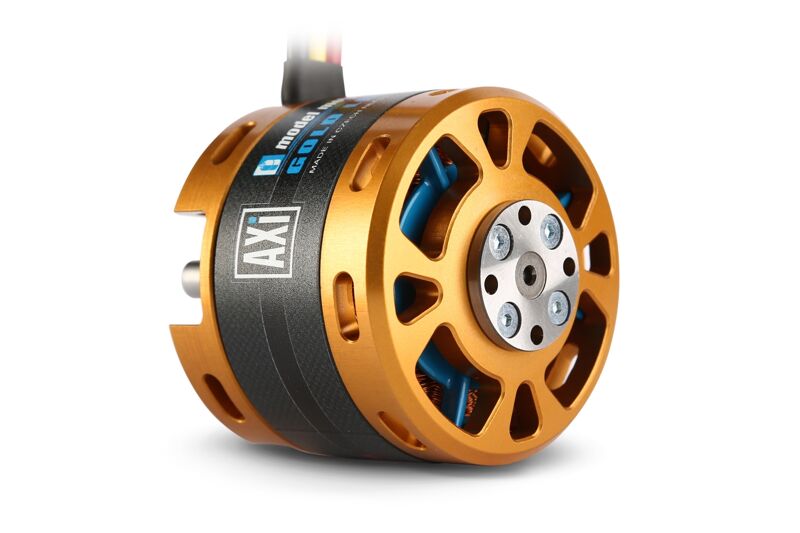

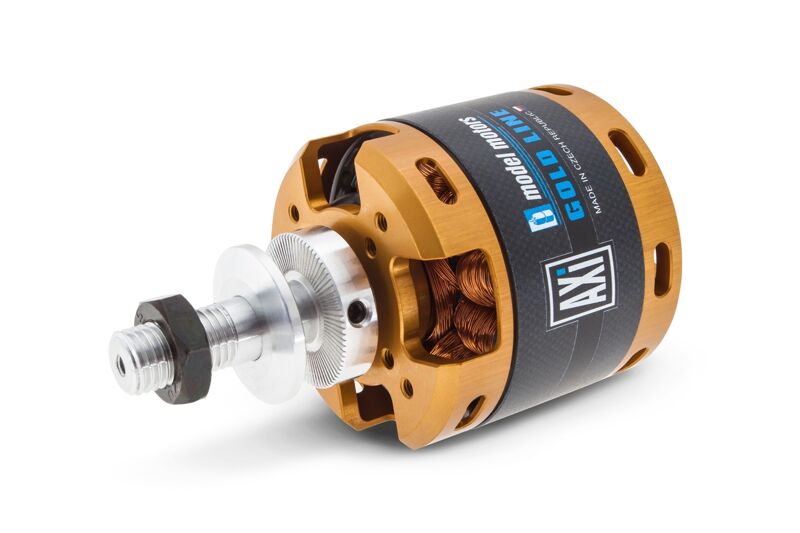

AXI 5330/F3A V2 brushless

AXI 5330/F3A V2 brushless

3EL105638V2

Trade prices excl. VAT

1 / € 250,90

not in stock

€ 303,59 € 250,90 excl. VAT

Powering LiXX cells	8 - 10
RPM/V [ot./min/V]	235
Internal resistance [mOhm]	45
Open-circuit current [A]	1.7
Max. efficiency [%]	93
Max. efficiency current (η>85%) [A]	23 - 57
Max. peak current (60 s) [A]	73
Max. power [W]	2780
Diameter [mm]	63
Length [mm]	65.5
Shaft diameter [mm]	8
Weight [g]	672
Poles count	14
Timing [°]	15 - 25
ESC [A]	90 - 120
Weight of glider (up-to) [g]	15000
Weight of trainer (up-to) [g]	8000
Weight of acrobat (up-to) (F3A) [g]	5500
Weight of 3D (up-to) [g]	4800

General Info

Barcode: 8595247302069

Motor - Specs

Motor - Input Voltage Range (V): 8S - 10S Li-Po

Motor - KV (Rpm/V): 235

Motor - Poles: 14-Pole

Motor - Timing: 15-25

Motor - Dimensions

Motor - Dia. ø (mm): 63

Motor - Length (mm): 65,5

Motor - Shaft Dia. ø (mm): 8.0 mm

Motor - Weight (g): 672
