The Taiwanese brand Blue-Bird has been around in the Europe RC-industry for some years now. Trusted by show pilots from all over the world for their high performance specifications, they offer a wide range of servos going from tiny micro servos to large servos pulling over 70kgs at competitive prices. Since a few years, at Aerobertics we offer a wide range of BlueBird servos to match your project needs.

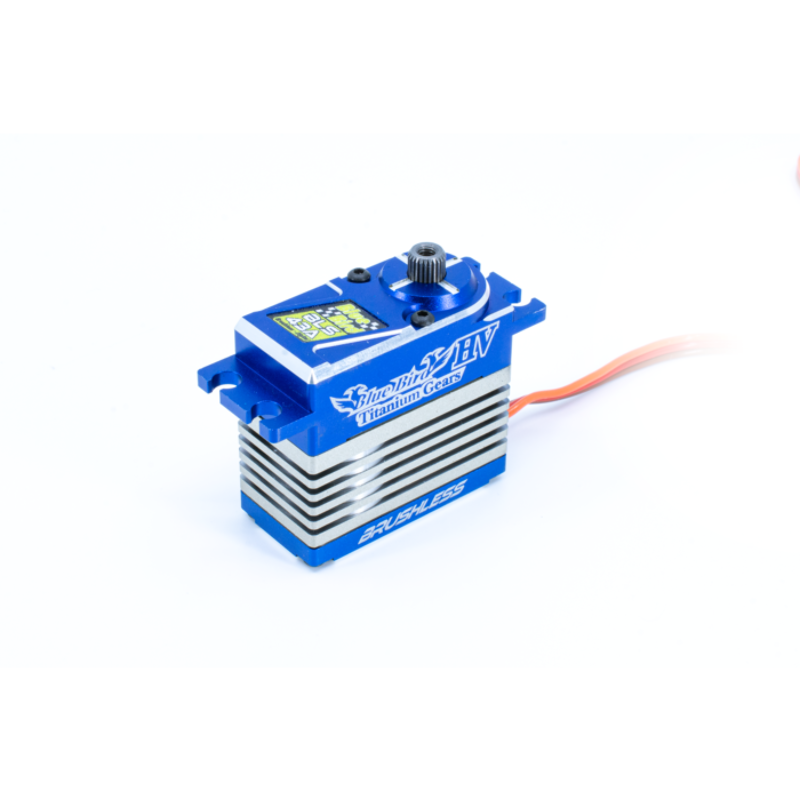

BlueBird BLS 43A has it's priority for 3D Airplane, Large Jet & 1/5、1/8th Buggy, Truggy, Crawler, Monster & Helicopter. (EP / Gas / Nitro)
- Soft Start Protection: A soft start to a neutral position.
- Over Voltage Protection: Over 9.0V drive the protection mode and 8.4V return to normal mode.
- Low Voltage Protection Lower than 4.0V, drive the protection mode and 4.5V return to normal mode.
- Locked Rotor Protection: Stall in 5 sec, output torque goes down.
- Temperature Protection: Overheat 85 degrees C, drive the protection mode and down 75 degrees C return to normal mode.
- Operating Voltage Range: 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe)
- Standard Full Aluminum Servo
- Control System: Digital Controller / AD 12-Bits Resolution ( 4096 Steps )
- Frequency: 333Hz / Neutral:1520us
- Dead Band Width: 0.001ms ( Default:1us)
- Ball Bearing: Dual
- Gear: Titanium Alloy Gears
- Motor: Premium Taiwan Brushless Motor
- Horn / Gear Spline: 25 Teeth ( Same as F-Type )
- Dimension (mm): 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
- Weight (gram): 78.5 ± 1 grams / 2.77 oz
- Torque At 6.0V: 35.5 kg-cm / 493.1 oz-in
- Torque At 7.4V: 43.8 kg-cm / 608.4 oz-in
- Torque At 8.4V: 49.7 kg-cm / 690.3 oz-in
- Speed At 6.0V: 0.13 sec / 60°
- Speed At 7.4V: 0.11 sec / 60°
- Speed At 8.4V: 0.10 sec / 60°
