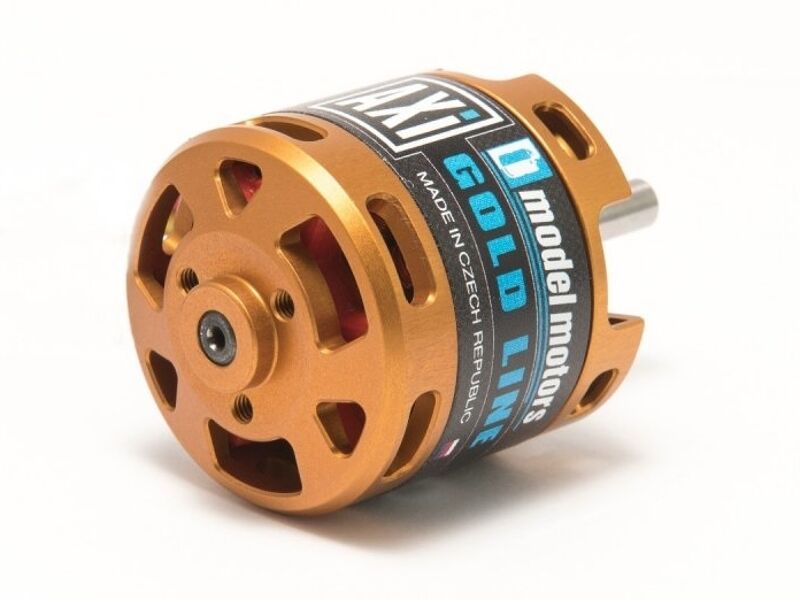

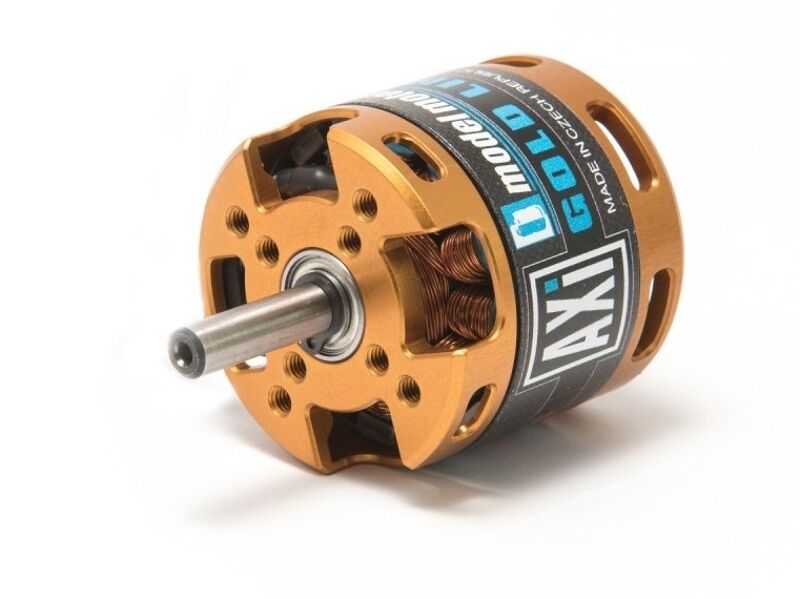

AXI 2814/6 V2 Bürstenloser Motor

AXI 2814/6 V2 Bürstenloser Motor

AXI model motors

3EL105323V2

Nicht auf Lager

€ 103,59 € 85,61 excl. Mwst.

Powering LiXX cells	2 - 3S
RPM/V [ot./min/V]	2850
Turn count	6
Internal resistance [mOhm]	22
Open-circuit current [A]	4.5
Max. efficiency [%]	82
Max. efficiency current (η>75%) [A]	20 - 45
Max. peak current (60 s) [A]	56
Max. power [W]	550

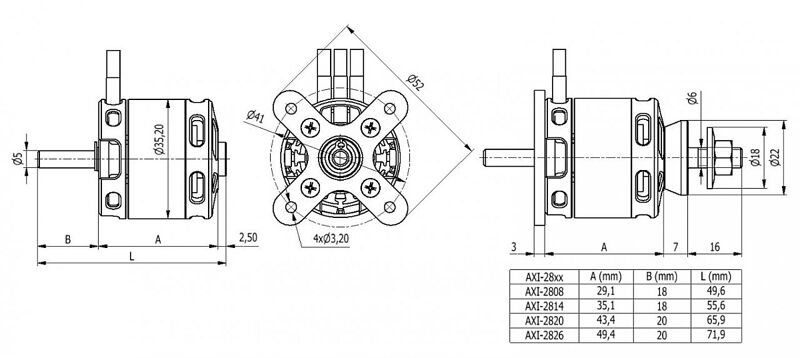

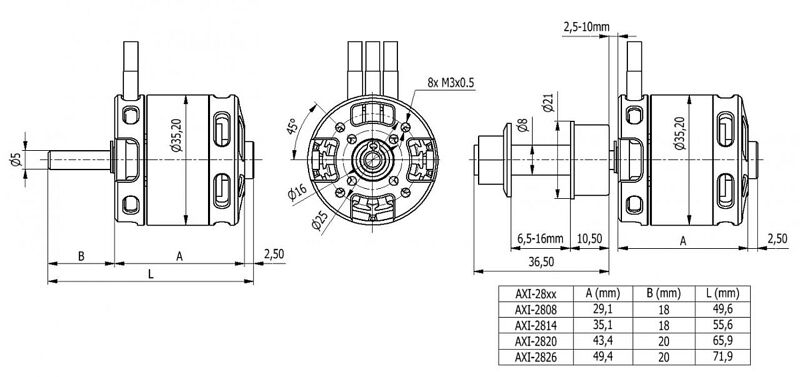

Diameter [mm]	35
Length [mm]	37.5
Shaft diameter [mm]	5
Weight [g]	107
Poles count	14
Timing [°]	15 - 25
ESC [A]	65 - 70
Weight of acrobat (up-to) (FunJet) [g]	600

General Info

Brand: AXI model motors

Barcode: 8595247302199,00

Motor - Specs

Motor - Input Voltage Range (V): 2S - 3S Li-Po

Motor - KV (Rpm/V): 2850,00

Motor - Poles: 14-Pole

Motor - Timing: 15-25

Motor - Turns (T): 6,00

Motor - Dimensions

Motor - Dia. ø (mm): 35,00

Motor - Length (mm): 37,50

Motor - Shaft Dia. ø (mm): 5.0 mm

Motor - Weight (g): 107,00
