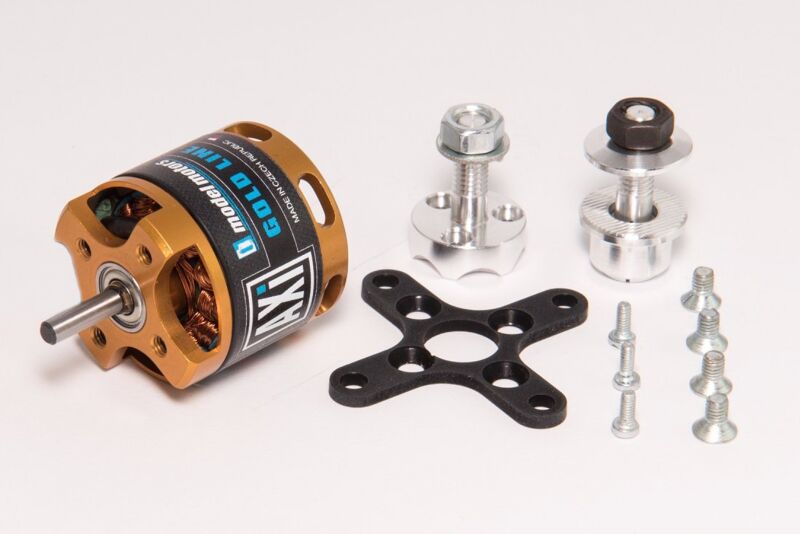

You will be surprised by the very high power delivered by these small and very robust, but light weight (43,5g with power cables) brushless motors with rotating case suitable for all models of 300-400 size, and microhelicopters. The hardened steel 3,17mm diameter shaft is supported by two large ball bearings which ensure very good mechanical reliability with front or radial mounting. As a result of using the latest ferromagnetic materials the AXI 22xx/xx V2 motors offer extremely high efficiency and high load capability for their weight.AXI GOLD LINE V2 with the high quality of manufacturing, reliability and performance are the best outrunners available in the market. A feature of the AXI design is provision for radial mounting (see picture). Delivered as standard radial mount set includes: mounting flange, propeller adaptor, securing collar, and screws.
Powering LiXX cells: 2 - 3
RPM/V [ot./min/V]: 1820
Turn count: 20
Internal resistance [mOhm]: 89
Open-circuit current [mA]: 800
Max. efficiency [%]: 84
Max. efficiency current (η>74%) [A]: 8 - 12
Max. peak current (60 s) [A]: 18
Max. power [W]: 182
Diameter [mm]: 27.7
Length [mm]: 25.5
Shaft diameter [mm]: 3.17
Weight [g]: 43.5
Poles count: 14
Timing [°]: 15 - 25
ESC [A]: 18 - 25
Weight of glider (up-to) [g]: 500
Weight of trainer (up-to) [g]: 450
Weight of acrobat (up-to) [g]: 350
Weight of 3D (up-to) [g]: 270
